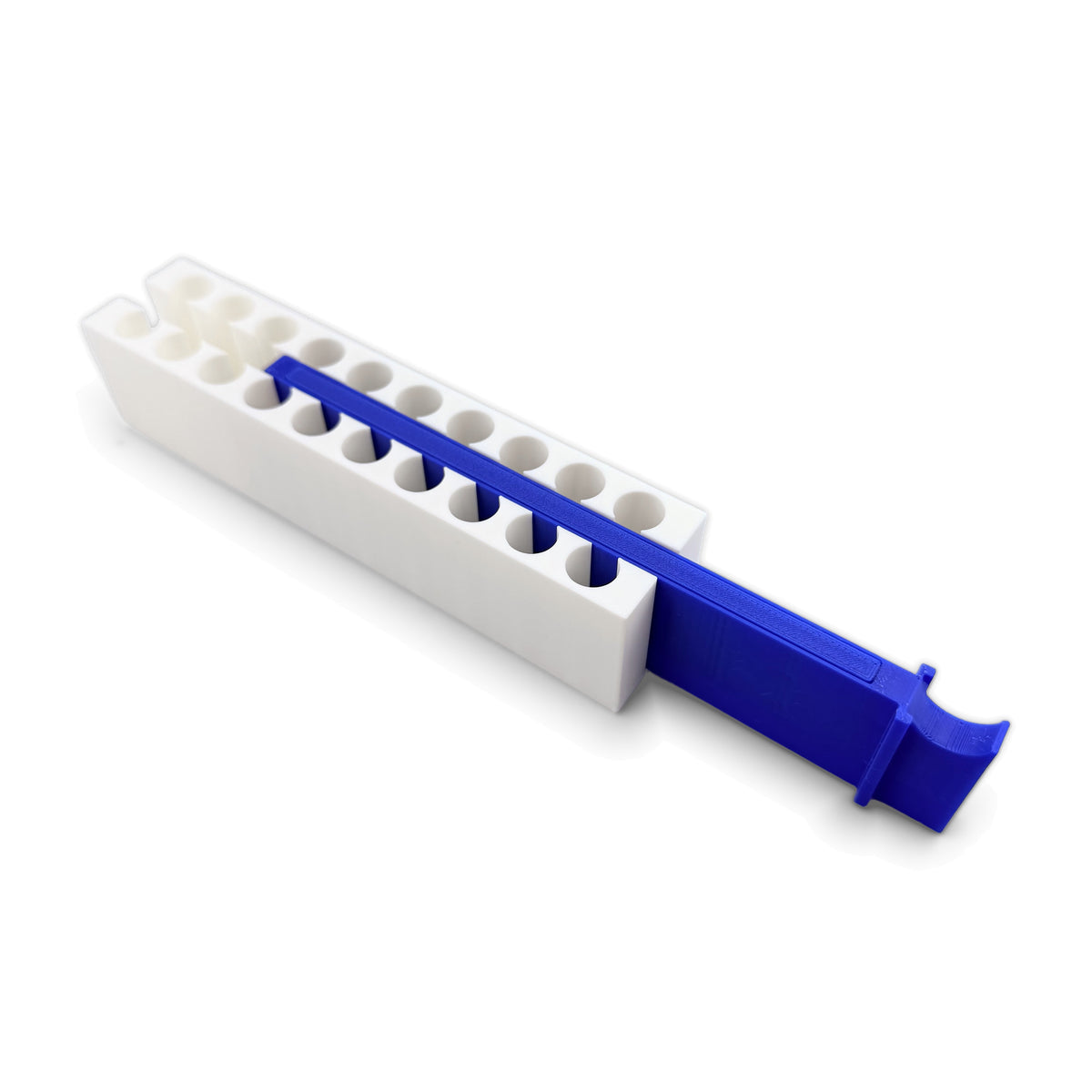

  • Magnetic bead separation rack, white body with blue sliding magnet bar partly extended, angled view

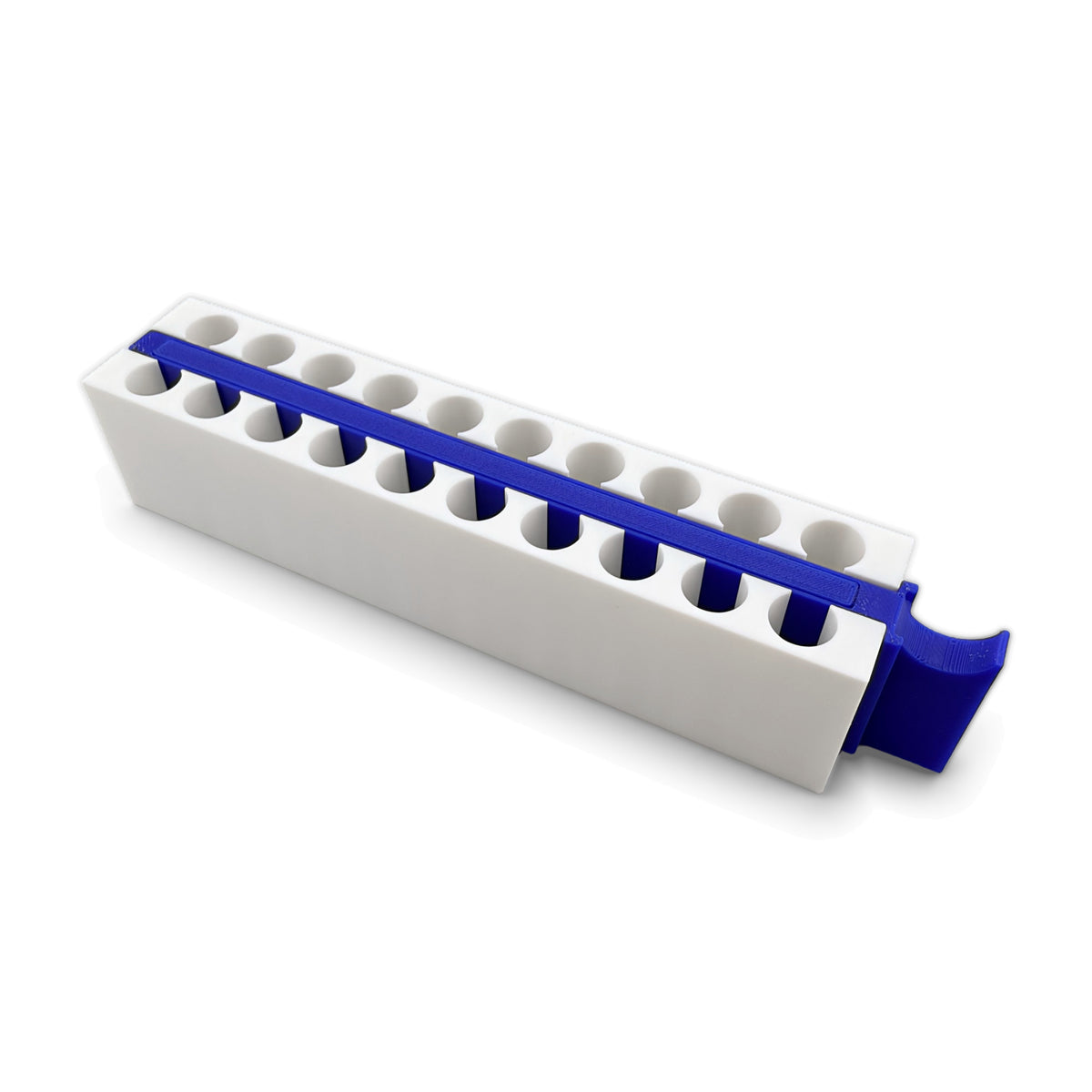

  • Rack with blue magnet bar fully inserted, angled view of both tube rows

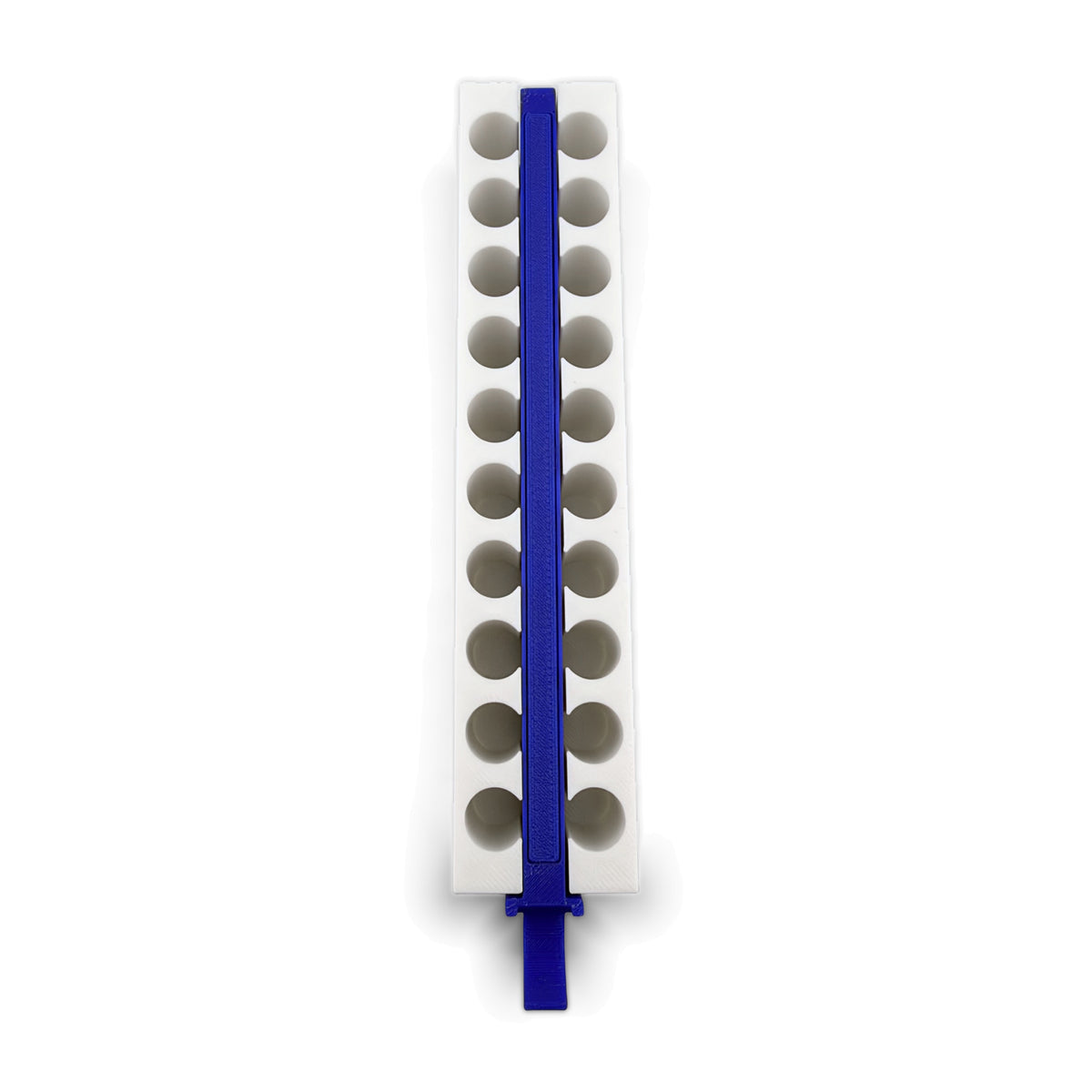

  • Top view of rack showing two rows of tube holes and the blue center magnet bar

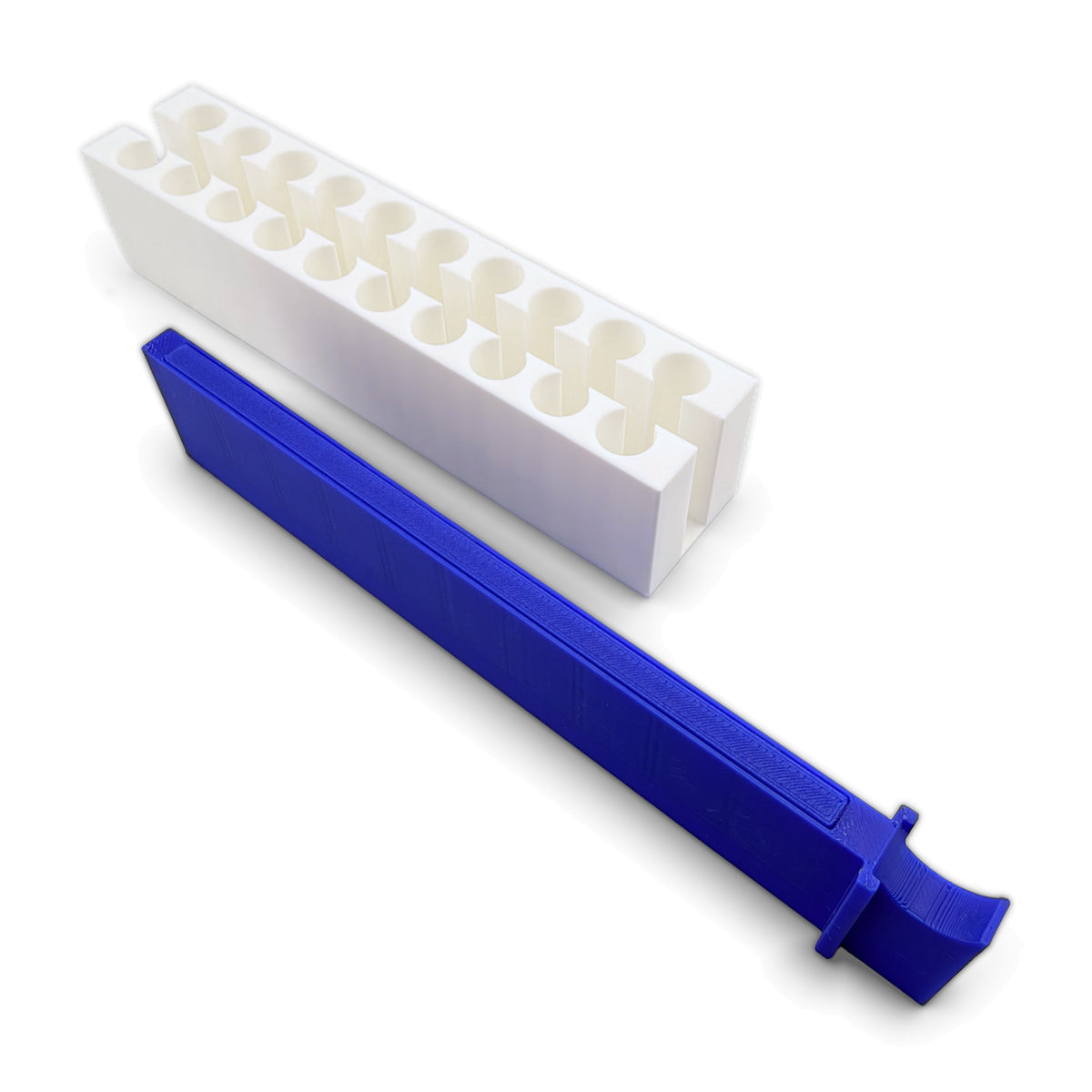

  • Blue sliding magnet bar removed beside the white rack body

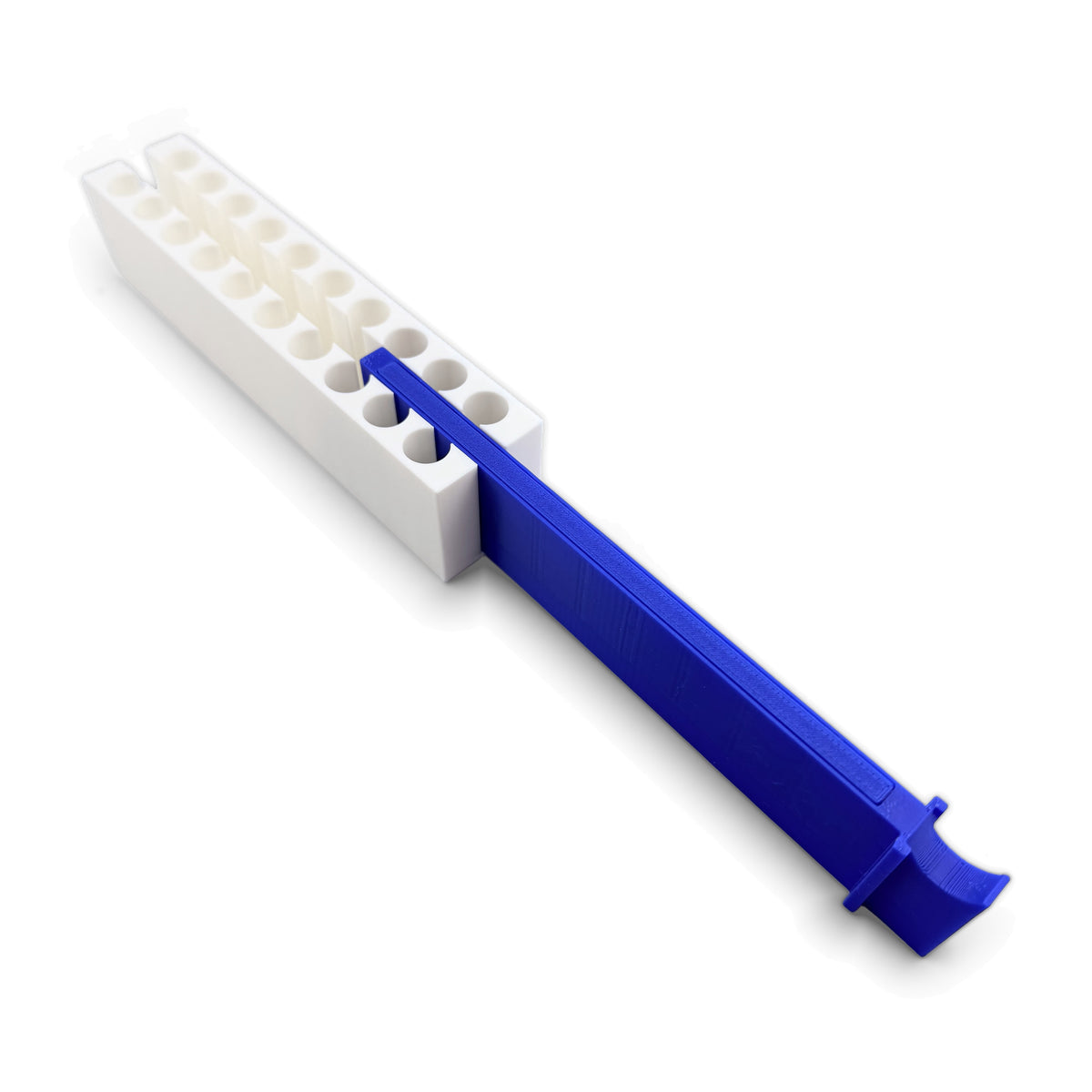

  • Magnet bar slid most of the way out of the rack, angled view

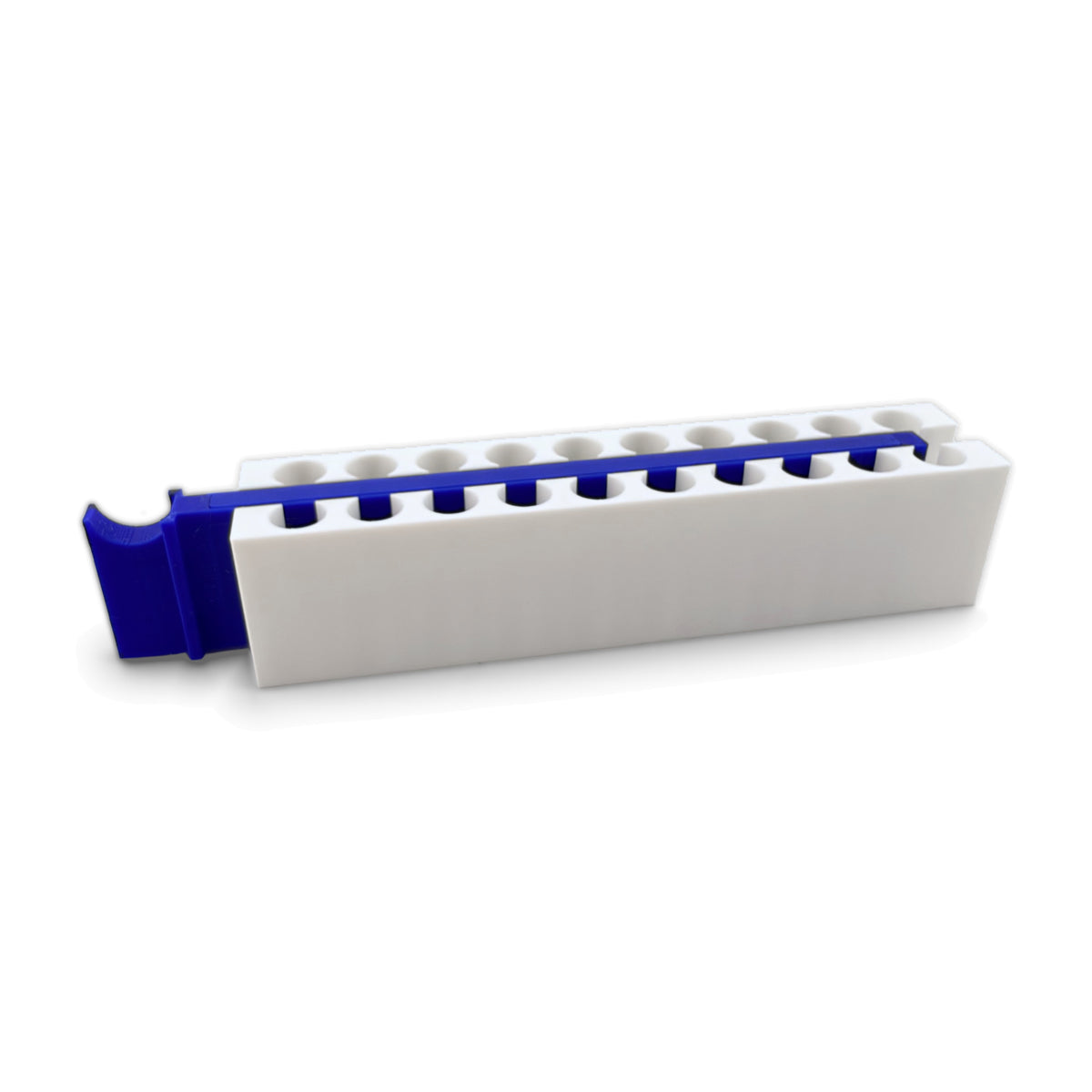

  • Side view of rack with blue magnet bar inserted, handle on the left

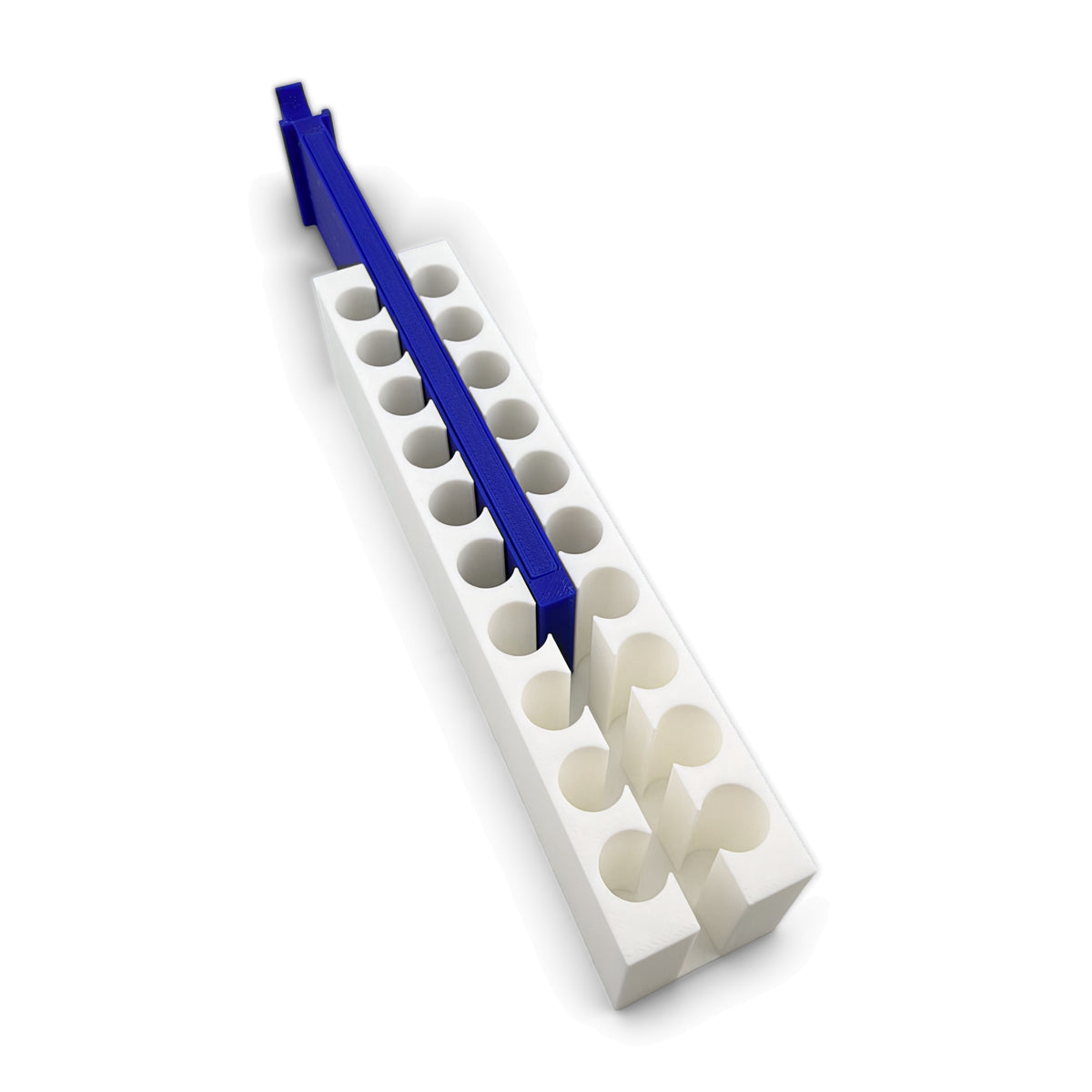

  • End view looking down the rack with the magnet bar partly withdrawn

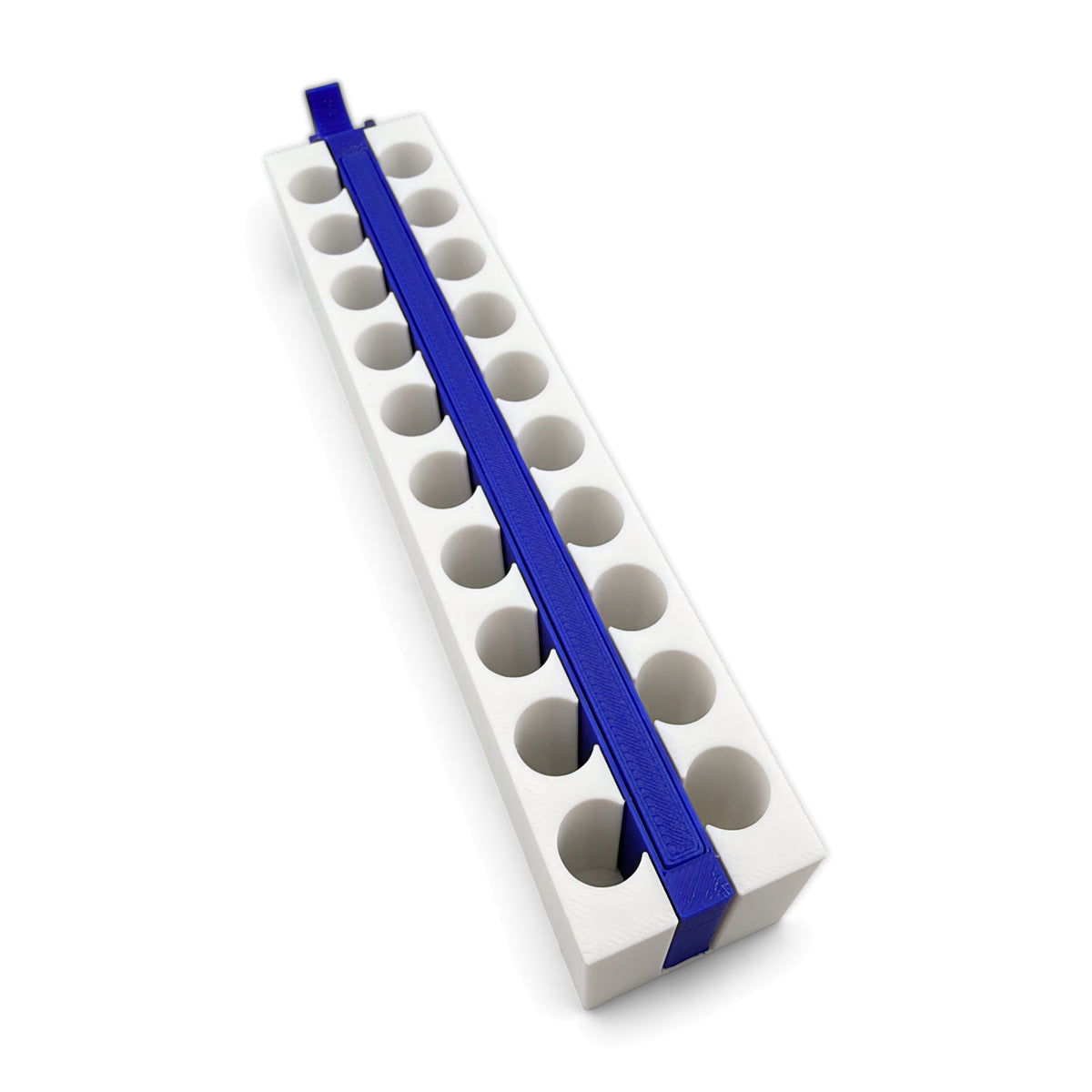

  • Rack with magnet bar inserted, viewed from the handle end

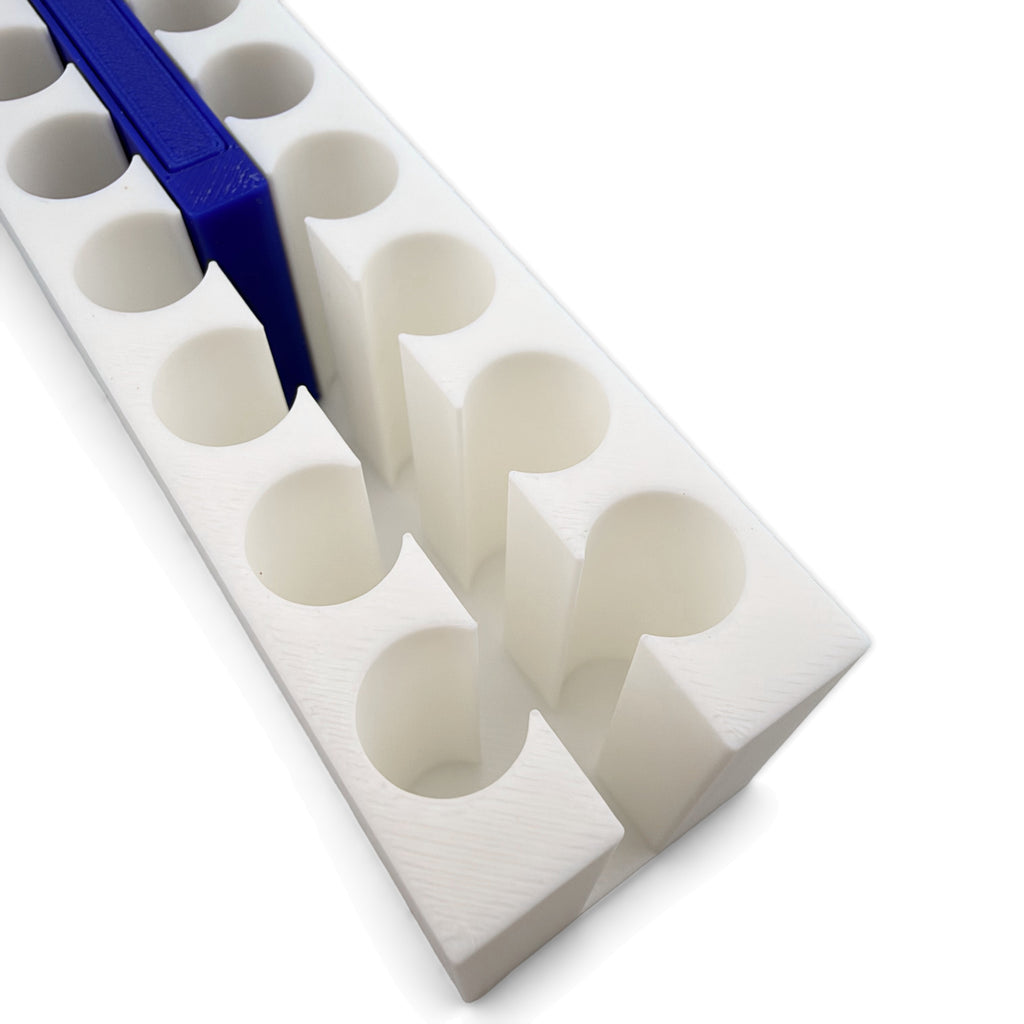

  • Close up of tube holes and center slot with the blue magnet bar
Magnetic Separation Rack, 20 Position Sliding Magnet Bar, 20 N52 Magnets, USA

Magnetic Separation Rack, 20 Position Sliding Magnet Bar, 20 N52 Magnets, USA

$39.95
$39.95
Free shipping in the US on this item

20 Position Magnetic Separation Rack with Sliding Magnet Bar

Magnetic bead rack with a closed sliding magnet bar. Slide the blue bar in to bring the magnets next to the tubes. Slide it out to move them away. One hand, no lifting tubes in and out.

Specifications

  • Magnets: 20 N52 neodymium magnets, stronger than standard grade magnets (12 x 2 mm discs), held in a closed, removable sliding bar
  • Tube positions: 20 (2 rows of 10)
  • Holes: 10.5 mm diameter x 34.5 mm deep
  • Overall size: 180 x 33 x 36 mm (about 7.1 x 1.3 x 1.4 in)
  • Body: white, durable engineered polymer
  • Slider: blue, durable engineered polymer
  • Weight: 4 oz
  • Made in USA by DC Additive Pros

Typical Workflows

  • Magnetic bead DNA and RNA purification
  • PCR cleanup and NGS library prep
  • Protein purification and immunoprecipitation

Care

Wipe clean with isopropyl alcohol. Not for high heat or autoclaving.

In the Box

1 rack body and 1 sliding magnet bar. Tubes and beads not included.

For research and laboratory use only.

Shipping

Shipping only. Made to order and ships from the USA within 2 business days.

Questions or custom sizes: info@dcadditivepros.com
