0U PDU Mounting Peg Buttons for APC, Replacement with Screws, Made in USA

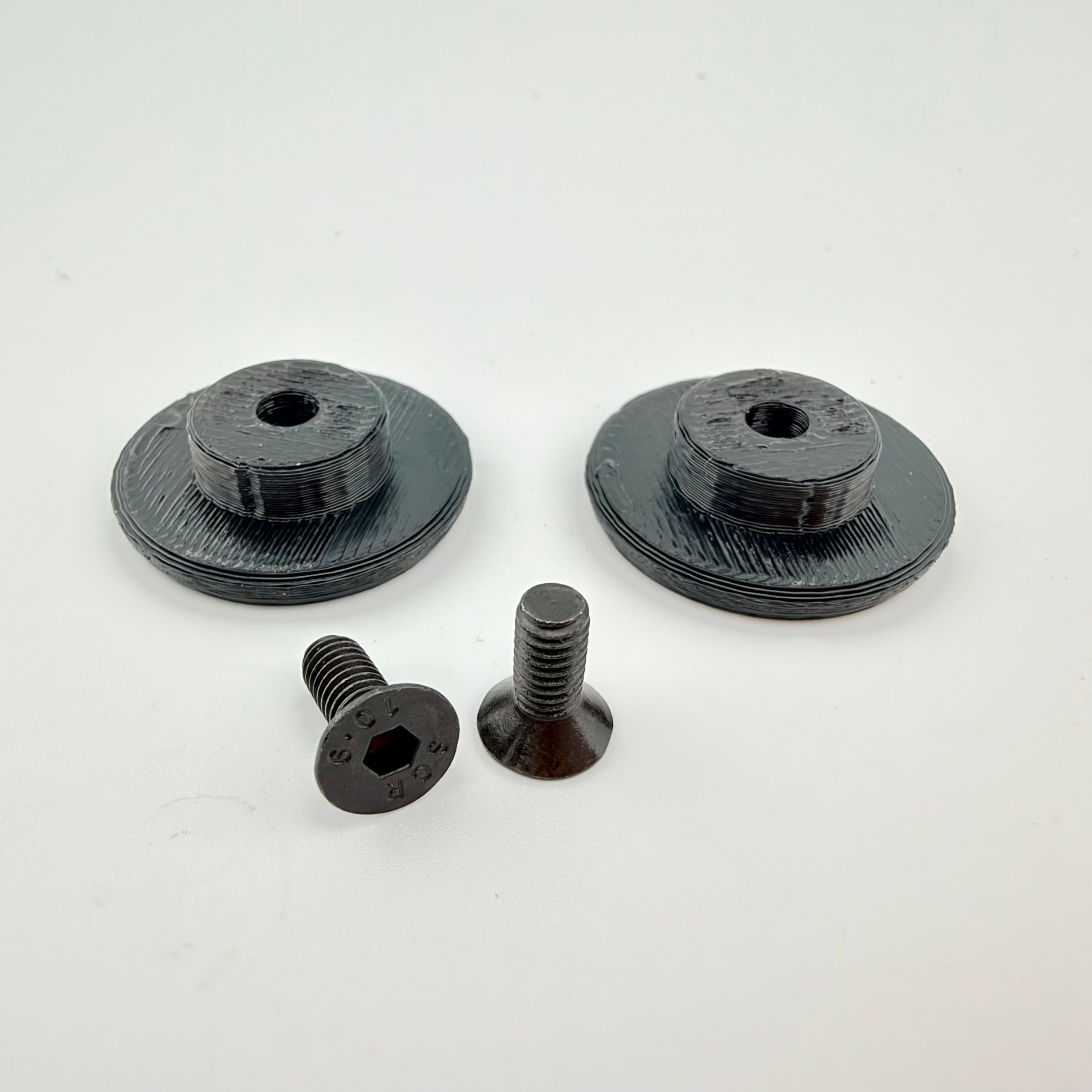

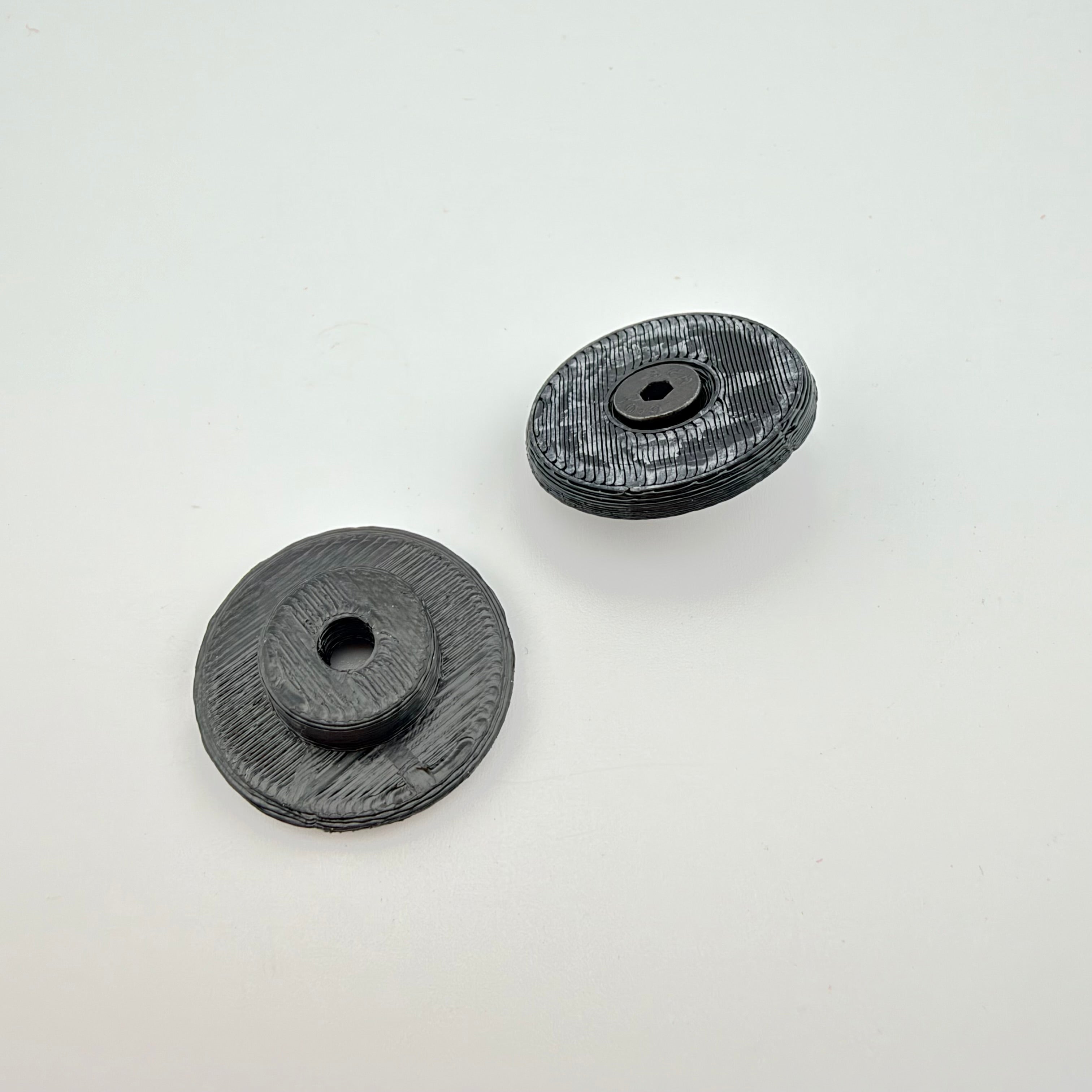

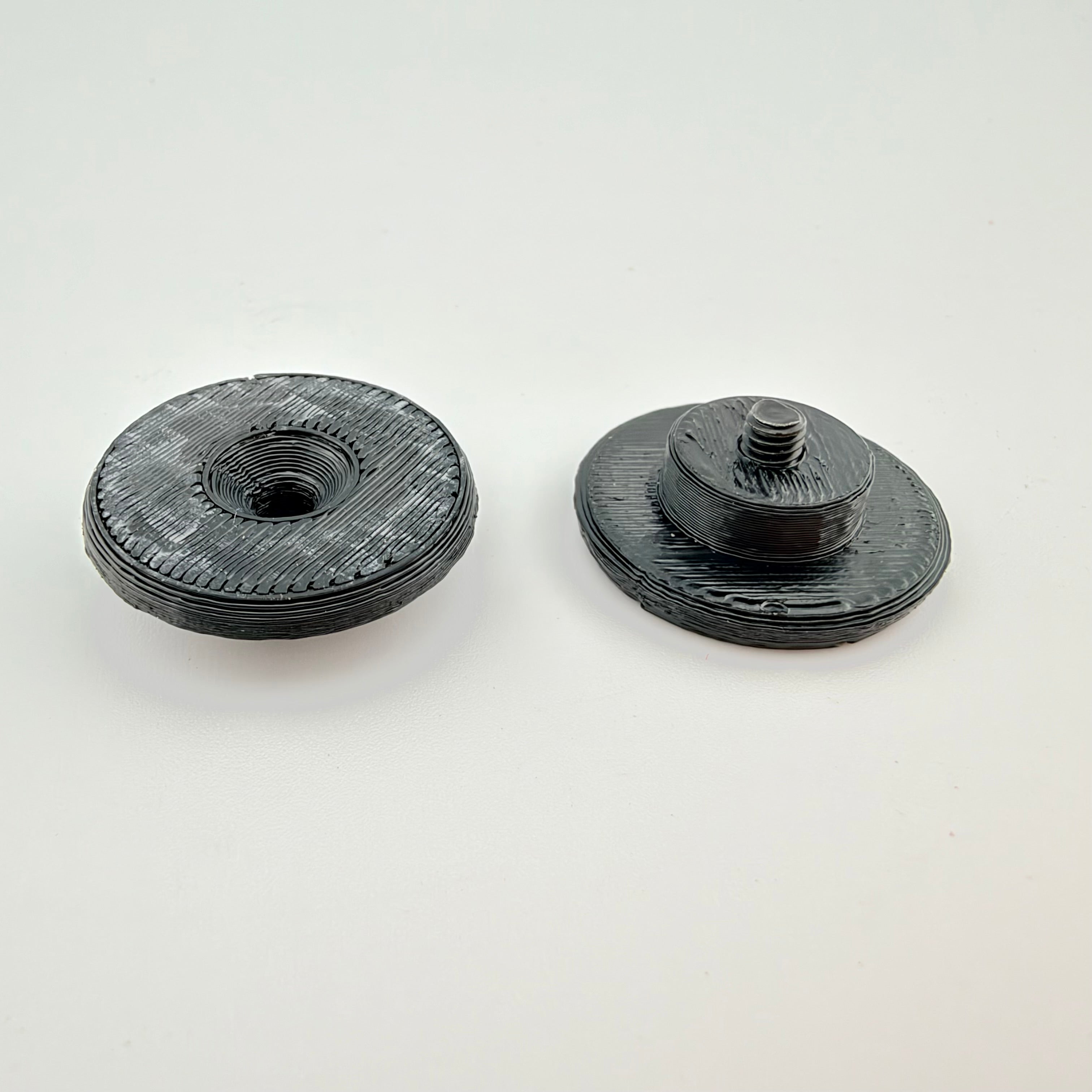

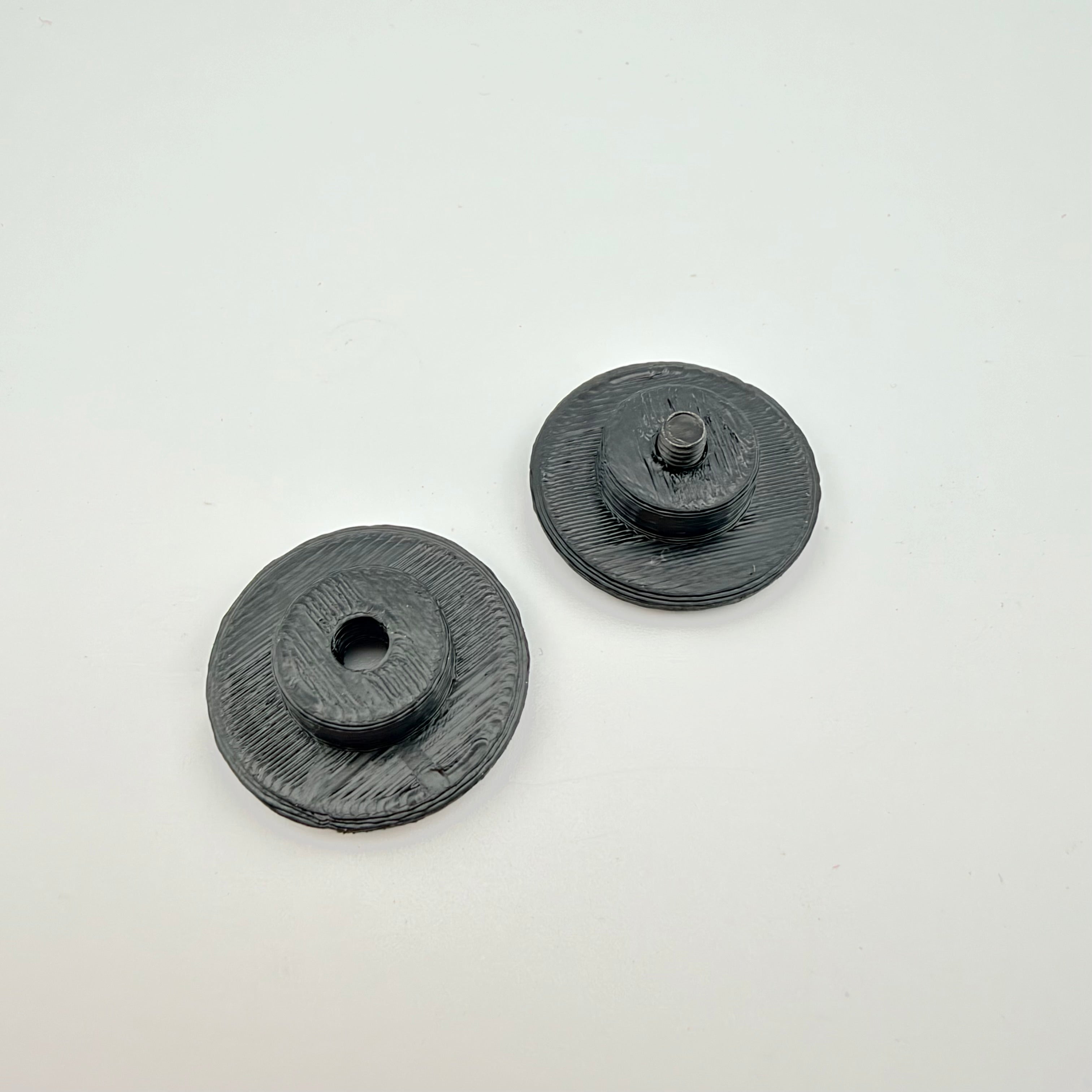

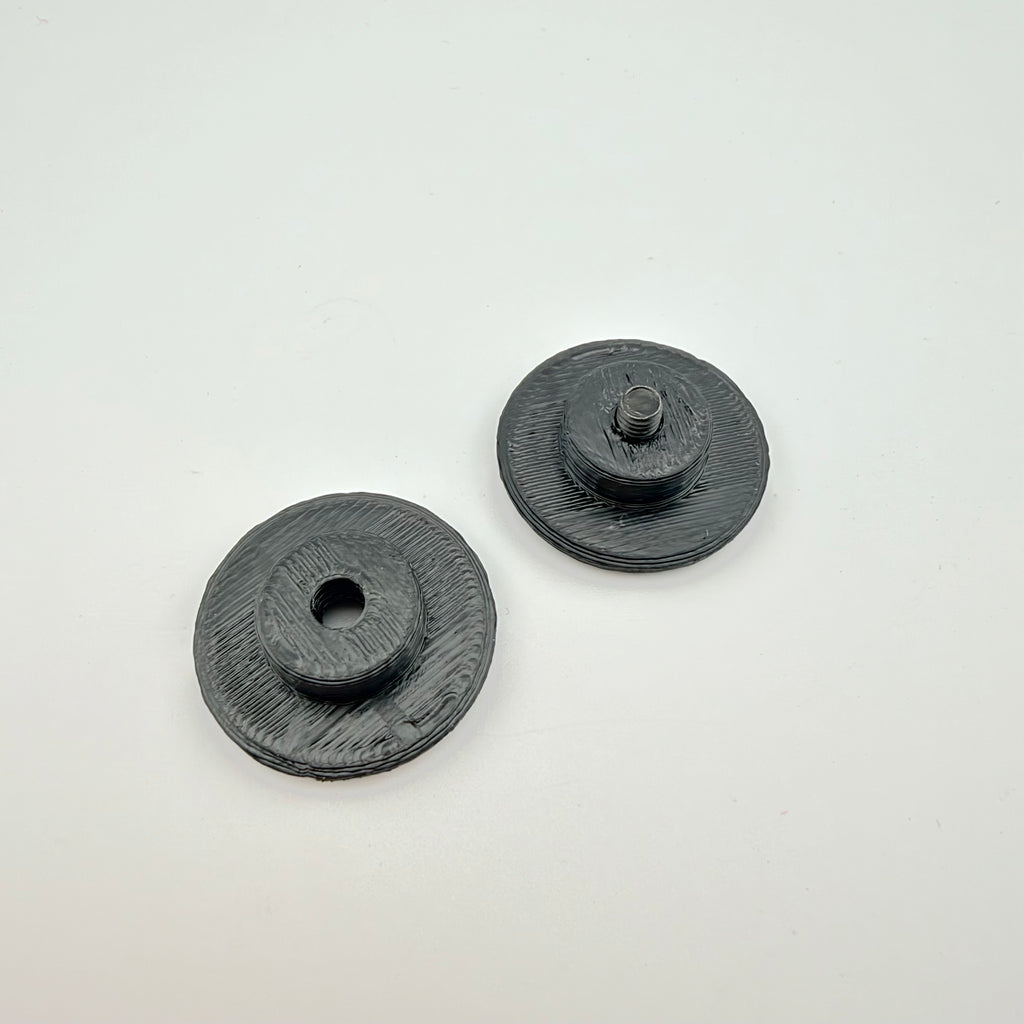

Restore any APC 0U rack PDU to its rack in seconds. These replacement mounting peg buttons are a direct fit for the APC 0U PDU keyhole mount, with a 25 mm head, a 13.5 mm shoulder, and a 7 mm overall height that matches the original APC peg. Made to order in the USA by DC Additive Pros, and every pair ships with the mounting screws.

How it works: attach each peg to your PDU with the included M4 screw, then the PDU hangs on the enclosure keyhole slots with no tools. These pegs replace APC's discontinued mounting hardware.

The pegs are almost always lost when a 0U PDU is redeployed or bought used. This is the part you need to hang the PDU again, without buying a whole new cable channel or bracket kit.

What you get

• Made to order in tough ABS in the United States
• Two M4 x 10 mm flat head machine screws included per pair
• Head 25 mm diameter × 2.8 mm thick; shoulder 13.5 mm diameter; overall height 7 mm
• Direct fit to the standard APC 0U PDU keyhole mount
• Two pegs mount one PDU (choose pack size below)

Compatibility

Compatible with APC 0U Rack PDUs across the AP7500, AP7800, and AP7900 series. Verified model references include AP7530, AP7532, AP7540, AP7830, AP7840, AP7841, AP7862, AP7863, AP7864, AP7866, AP7866A, AP7867, AP7893, AP7930, AP7931, AP7932, AP7940, AP7941, AP7960, AP7961, AP7990, and AP7991. If your model is not listed, send us the number and we will confirm fitment.

Material notes

ABS is rated for continuous rack interior temperatures up to 80 °C, which covers normal cold aisle and hot aisle conditions.

Pack sizes

Choose a 2 pack for a single PDU, a 4 pack for two PDUs, or a 12 pack that mounts six PDUs and lowers your cost per peg for refurbishers and MSPs.

Bulk and custom orders

Need more than a dozen? We supply the standard peg in 24, 50, and 100 count boxes for refurbishers, MSPs, and data center operators. Contact us for bulk pricing.

Need matching pegs in a different size, or a peg for an APC model we have not listed? If you know the dimensions, or can send a sample or a photo with caliper measurements, DC Additive Pros can manufacture matching pegs and custom sizes. Contact us for a quote.

Custom geometry is made to order in bulk only, with a 25 piece minimum, because each custom run requires setup and engineering time. Send us your part and quantity for a quote.

Frequently asked questions

What replaces the discontinued APC toolless mounting pegs?
These pegs are a direct replacement for the APC 0U PDU mounting buttons that APC discontinued. Attach the peg to the PDU with a standard M4 x 10 mm screw into the rear insert, then the PDU drops into the enclosure keyhole slots.

What size are APC PDU mounting pegs?
The head is 25 mm in diameter and 2.8 mm thick, the shoulder is 13.5 mm in diameter, and overall height is 7 mm, matching the original APC disc peg.

What if my APC PDU model is not listed?
Send us the model number and we will confirm fitment. If you know the peg dimensions, or can send a sample or a photo with caliper measurements, we can also quote matching or custom sizes.

How many pegs do I need per PDU?
Two pegs mount one 0U PDU. Choose the 2 pack for one PDU, the 4 pack for two PDUs, or the 12 pack for six PDUs.

Are the screws included?
Yes. Every pair ships with two M4 x 10 mm flat head machine screws.

What material are the pegs made from, and what temperature can they handle?
The pegs are made from ABS, rated for continuous rack interior temperatures up to 80 °C under normal cold aisle and hot aisle conditions.

Do you offer bulk or custom orders?
Yes. Bulk quantities of the standard peg are available in 24, 50, and 100 count boxes; contact us for pricing. If you know the dimensions, or can send a sample or a photo with caliper measurements, DC Additive Pros can manufacture matching pegs and custom sizes. Custom geometry is made to order in bulk only, with a 25 piece minimum.

How long does made-to-order take before my pegs ship?
Every peg is made to order in the United States. Per our shipping policy, most standard orders are produced and ready to ship within 2 to 7 business days after payment. After shipment, continental US delivery is typically 2 to 5 business days (Alaska and Hawaii typically 5 to 8). Tracking is emailed when the order ships.

Where are these made?
Every peg is made to order in the United States by DC Additive Pros.

Compatible with APC brand PDUs. DC Additive Pros is not affiliated with, authorized by, or endorsed by Schneider Electric or APC. APC, NetShelter, and all model numbers are trademarks of their respective owners, referenced here only to indicate fitment.
